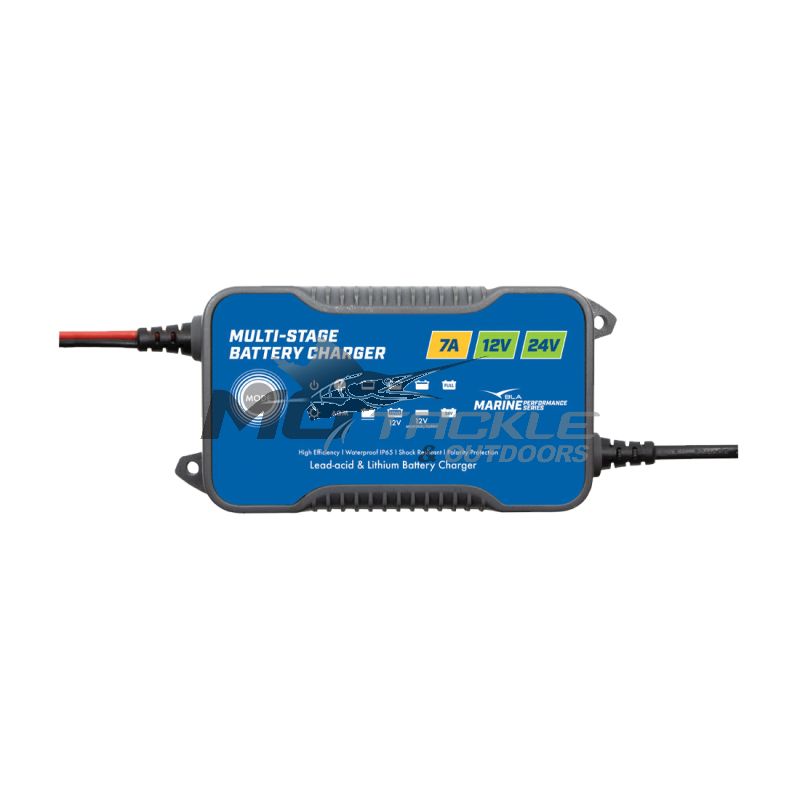

BLA Marine Performance Series Portable Battery Charger

It is suitable for most types of 12V & 24V batteries, including flooded, gel, AGM and lithium (12V only) and includes a memory feature to retain last used chemistry and voltage settings. Included with the charger are 2 charging cables, one with alligator clips and the other with ring termals, both with a quick fit connection.

Features:

• 12V – 7A, 24V – 3.5A ouput
• Suited to multiple battery chemistries – flooded, gel, AGM & lithium (12V only)
• Water, dust resistant – IP65 rating
• Power supply mode
• Quick connect alligator clips, or ring terminal connections

Specifications:

• BLA Code:

  • Model: 111166
  • Voltage: 12V

• Input Specifications:

  • Input Voltage: 220-240V AC
  • Input Power: 150W Max.

• Output Specifications:

  • Output Voltage: 12V DC or 24V DC
  • Output Current:
    • 12V lead acid - normal mode: 7A
    • 24V lead acid - normal mode: 3.5A
    • 12V lithium mode: 7A
    • 12V AGM/lead acid cold mode: 7A
    • 24V AGM/lead acid cold mode: 3.5A
    • 12V supply mode: 5A
    • 12V repair mode: 1.5A
    • 12V maintenance mode: 5A

• Battery Capacity:

  • 12V: 14-200Ah
  • 24V: 14-120Ah

• Battery Chemistries Supported:

  • 12/24V DC lead acid battery (wet, gel, MF, AGM)
  • 12V lithium battery (LiFePO4)

• Temperature Range:

  • Operating: 0-40°C
  • Storage: -20-60°C

• Housing Protection:

  • IP65

• Weight:

  • 1000 grams

• Package Dimensions:

  • Length x Width x Height: 245 x 105 x 105 mm
