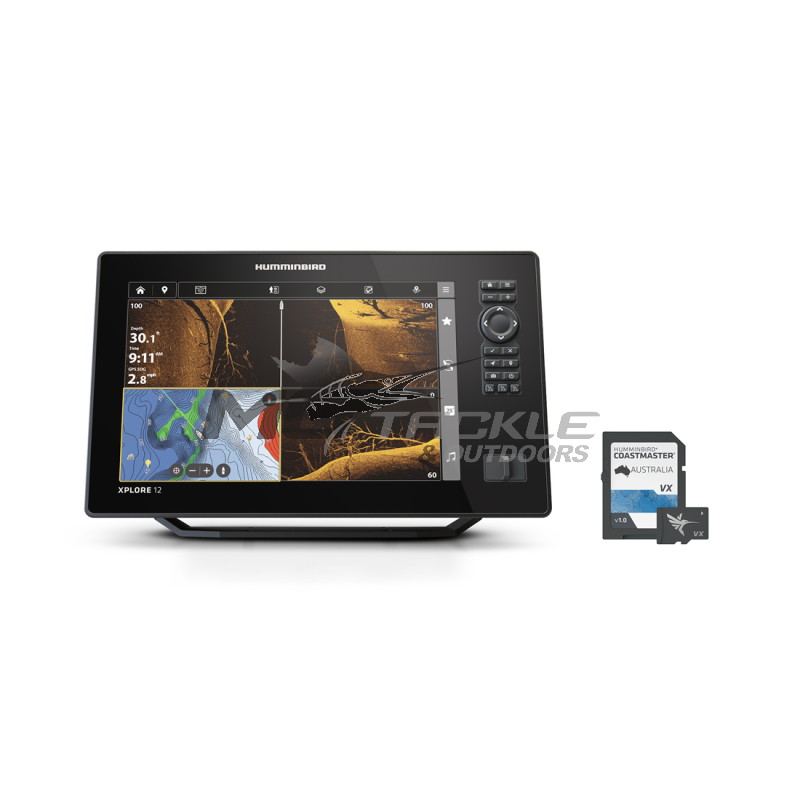

Humminbird Xplore 12 CMSI Sounder w/ Nav Card

The XPLORE 12 CMSI+ is a high-tech fish finder with a crystal-clear 12-inch touchscreen display. It comes with MEGA Side Imaging+ and MEGA Down Imaging+ for detailed underwater views, plus Dual Spectrum CHIRP Sonar for accurate fish detection. Built-in GPS helps with navigation, and it also supports Wi-Fi, Bluetooth, NMEA 2000®, and Ethernet networking. This makes it compatible with the One-Boat Network™, allowing seamless integration with Humminbird, Minn Kota, and Cannon products.

Specifications:

General

• Series: XPLORE
• Display Size: 30.73 cm (12”) diagonal
• Display Resolution: WXGA 1280 x 800
• Display Features:
  • High-definition display
  • Engineered for polarized eyewear
  • Anti-glare, edge-to-edge screen

Enhancements

• Cross Touch® Interface
• In-pane touch targets
• Updated home screen & user interface
• Updated menu/settings structure
• New keypad design
• Two micro SD card slots
• Twist-lock cable connections
• Wi-Fi software updates
• Uses the same power cable as APEX units
• Dual-band GPS for improved accuracy

Sonar Capabilities

• Imaging:
  • MEGA Side Imaging+
  • MEGA Down Imaging+
  • MEGA Live 2 Imaging+ (compatible)
  • MEGA 360 Imaging (compatible)
• Dual Spectrum CHIRP Sonar
  • Frequencies Supported:
    • Full: 150-220 kHz @ 25/42°
    • Narrow: 180-240 kHz @ 25°
    • Wide: 140-200 kHz @ 42°
• Depth & Range:
  • MEGA Side Imaging+® Range:
    • 800 ft (244 m) @ 455 kHz: 405-505 kHz
    • 400 ft (122 m) @ MEGA: 1100-1200 kHz
  • MEGA Down Imaging+® Depth:
    • 400 ft (122 m) @ 455 kHz: 420-520 kHz
    • 200 ft (61 m) @ MEGA: 1125-1225 kHz

Fish Finder Functionality

• Intuitive Cross Touch®
• Quick-launch home screen

Connectivity

• CE, NMEA 2000®
• Bluetooth®
• Ethernet
• Wi-Fi
• MFi (Made for iPhone)

Memory & Storage

• Dual Micro SD card slots

Power & Mounting

• Waterproof Rating: IPX7
• Power Input: 10-20 volts
• Power Output (Peak-to-Peak): 8000 Watts
• Power Output (RMS): 1000 Watts
• Transducer Mount Location: Transom

GPS & Chartplotting

• GPS Chartplotting: Included
• GPS Trackplotting: Included
• Mapping Compatibility:
  • LakeMaster
  • CoastMaster
  • Navionics Gold/HotMaps
  • Navionics Platinum+
  • Platinum
  • Heading Sensor GPS

Software & Integration

• Upgradable Software: Yes
• Plug-and-Play Minn Kota Compatibility
• One-Boat Network® App: Share waypoints between XPLORE and your phone

Included in the Box (Applies for CMSI+ 104681)

• XPLORE Fish Finder
• Power Cable
• Unit Cover
• Gimbal Mount with Hardware and Knobs
