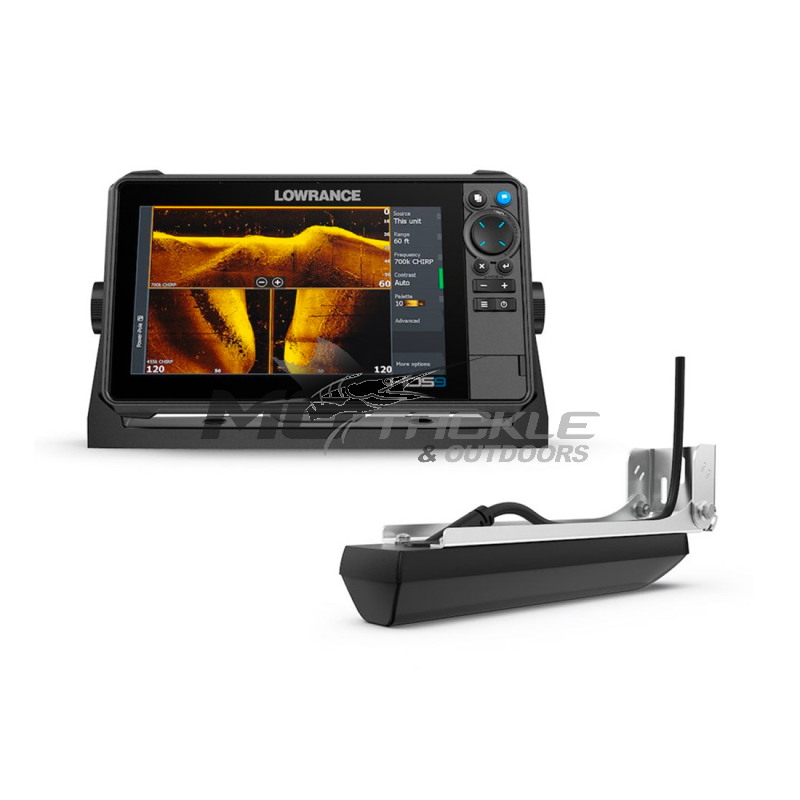

Lowrance HDS Pro 9 Active Imaging HD 3-In-1 Sounder

See more and catch more with the new HDS PRO fishfinder/chartplotter. Watch fish react to your lure live with new, high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with new, ultra high-definition Active Imaging™ HD. Quickly find fishing areas with the latest and most detailed C-MAP® charts and get full fishing system networking with expanded boat control from bow to stern.

Features:

• SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
• New! High-definition up to 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
• New! High-resolution ActiveTarget® 2 Live Sonar ready
• FishReveal™ with new SideScan view, as well as Downscan*
• Available in 9inch display size
• Preloaded C-MAP® Enhanced charts for New Zealand and Australia
• Real-time mapping available with C-MAP® Genesis Live.
• Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views
• Large programmable keys for 10, 12 and 16-inch sizes
• Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot
• NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications
• Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.

*SidescanFishReveal requires S3100 module and a compatible transducer

Specifications:

• Physical Dimensions: 308mmW x 178.8mmH x 93.7mmD including bracket
• Screen Size: 9"
• Display Resolution: 1280W x 720V pixels
• Screen Brightness: 1200 nits
• Processor: Dual-Core
• IPX Water Rating: IPX7
• Voltage: 10-17vDC
• Wattage: 37.7W max power consumption
• Transmit Power: 1kW
• Ethernet Ports for multiple screens: 2 Ports
• NMEA0183 Compatibility: Yes
• NMEA2000 Compatibility: Yes
• Video Input Ports: 1 x Composite RCA
• Mounting Options: Bracket Mount and Surface Mount
• WiFi Connectivity: Builtin
• Expansion Card Slot: 2 x microSD
• Accepted Map Cards: CMAP Discover, CMAP Reveal
• Waypoints: 3000
• Routes: 100
• Track Log: 100 Trails with up to 10,000 points per trail
• Sonar Compatible: Yes
• Supports AIS (tracks target ships position): Yes
• Tide Tables (from map card option): Yes
• Autopilot Compatible: Yes
• Trolling Motor Compatible: Yes
• Audio System Comaptible: Yes
• Fusion-Link Compatible Marine Radio Support: Yes
• Radar Compatible: Yes
• Chirp Sonar: Yes
• Operating Frequency: 83KHz, 200KHz, 455KHz, 800KHz
• Active Imaging: (Transducer Dependant) HD, with Active ImagingHD Transducer
• Down Imaging: (Transducer Dependant) Yes
• Useable Depth Down Imgaging: 50m+
• Sonar Useable Depth: (T/D & Frequency Dependant) 300m+ with 1kW T/Ducer
• Side Imaging (Transducer Dependant): Yes
• Sonar Track Back: Yes
• Output Power: RMS 1kW
• Water Temperature: Yes
