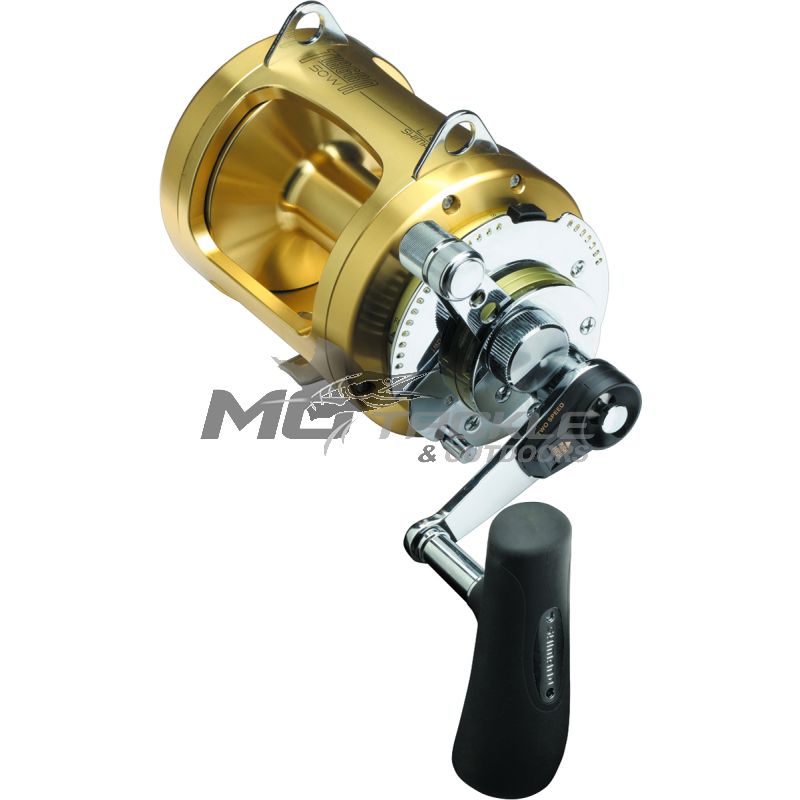

Shimano Tiagra Overhead Reel
| Reel Model | Bearings | Capacity | Cast Weight | Drag Rating | Gear Ratio | Length | Size |
|---|---|---|---|---|---|---|---|
| 16 | 6 | 50lb - 1210m | 1077g | 13kg | 3.9:1 - 1.7:1 | 0.24 | 16 |
| 20A | 4 | 50lb - 1225m | 1409g | 16kg | 3.9:1 - 1.7:1 | 0.25 | 20A |
| 30WLRSA | 4 | 65lb - 1435m | 1576g | 15kg | 3.9:1 - 1.7:1 | 0.26 | 30WLRSA |
| 30A | 4 | 50lb - 1805m | 1486g | 15kg | 3.9:1 - 1.7:1 | 0.25 | 30A |
| 50A | 4 | 80lb - 1135m | 2364g | 20kg | 3.1:1 - 1.3:1 | 0.33 | 50A |
| 50WA | 4 | 80lb - 1575m | 2447g | 20kg | 3.1:1 - 1.3:1 | 0.33 | 50WA |
| 50WLRSA | 4 | 80lb - 1575m | 2447g | 20kg | 3.1:1 - 1.3:1 | 0.33 | 50WLRSA |
| 80WA | 4 | 100lb - 2445m | 3266g | 24kg | 2.5:1 - 1.3:1 | 0.34 | 80WA |
| 130A | 6 | 150lb - 3315m | 4936g | 45kg | 2.2:1 - 1.1:1 | 0.37 | 130A |
In the world of sport fishing, anglers often pursue fish that engage in epic battles, capable of hours-long fights and extensive runs that can intensely heat up the reel's drag system. This heat may inadvertently alter the drag settings, potentially leading to either insufficient pressure on the fish or, in severe cases, a snapped line. However, Shimano's innovative Hydrothermal Drag System addresses this challenge by automatically adjusting to compensate for heat buildup, thus preserving the initial drag settings. Moreover, the Tiagra reel boasts a pre-lubricated graphite drag washer that is designed to resist corrosion from saltwater, ensuring smooth operation under any conditions.
The physical demands on the reel are immense, especially when an angler, using either a game chair or a stand-up rod bucket and harness, battles a large fish. The Tiagra's robust one-piece frame is meticulously crafted from a seven-millimeter-thick aluminum tube, enhancing its durability and strength. It features A-RB bearings, high-grade stainless steel gears, and a two-speed shifting mechanism that keeps the pinion and drive gears constantly engaged. Additionally, the Tiagra reels include a calibrated preset drag knob with detents that allow adjustments in approximately half-pound increments—though it serves merely as a guide and should be fine-tuned with a loaded rod and scales for optimal accuracy. Notably, at 89 decibels, the ratchet's volume is the highest among production reels, emphasizing its robustness.
The Tiagra 'A' series reels are distinguished by their heavy gold anodizing, which significantly enhances their resistance to the corrosive effects of saltwater. They also feature a drilled drag quadrant tailored to Australian fishing conditions, allowing for finer drag adjustments. The design includes a specially crafted rubberized power handle that is counterbalanced for ease of winding. Its textured surface provides a secure grip, crucial during lengthy battles or in humid, tropical environments.
Features:
- Hydrothermal Drag System to maintain drag settings despite heat.
- Saltwater-resistant, pre-lubricated graphite drag washer.
- Heavy-duty construction with a one-piece aluminum frame and stainless steel gears.
- Calibrated drag knob for precise adjustments.
- Ergonomic, rubberized power handle for enhanced grip during extended use.
