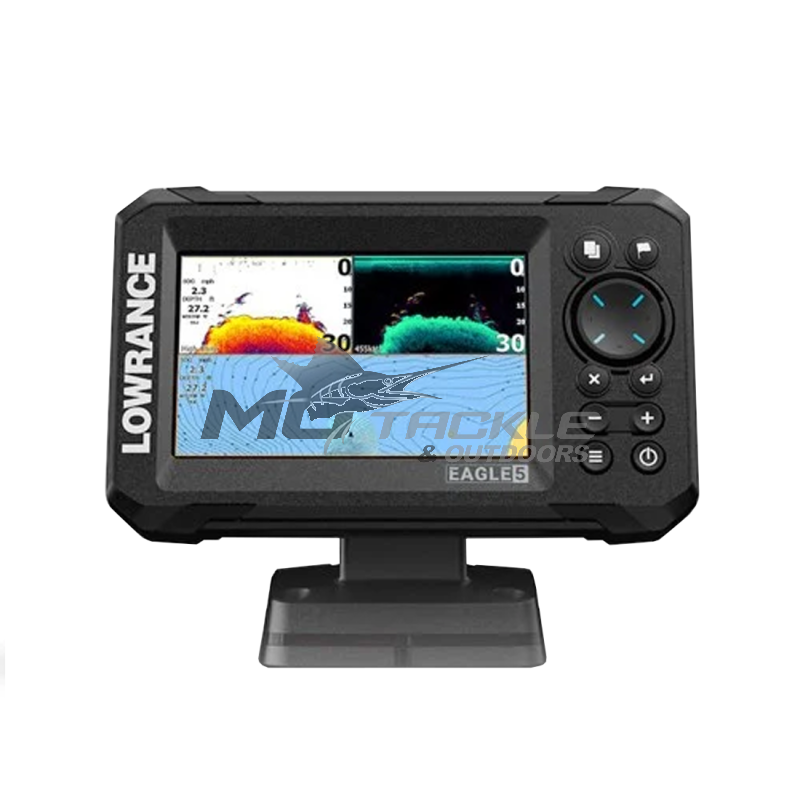

Lowrance Eagle 5 SplitShot HD AUS/NZ Sounder

Eagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features newly designed SplitShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal set up. A new IPS screen provides higher resolution and visibility from all angles. And C-MAP® Embedded inland and coastal charts for New Zealand and Australia allow you to spend more time fishing and less time searching.

Features:

• Enhanced SplitShot™ HD Transducer with Autotuning sonar
• C-MAP® Embedded inland and coastal charts for New Zealand and Australia feat. Genesis® Live
• IPS screen, viewable from all angles, even in polarized glasses
• New reliable twist-lock connector system for easy installation in any boat or kayak
• SD card slot for software updates, Genesis Live recording and charting add-ons.
• See fish hiding in cover with FishReveal™ mode
• Increase contrast and viewability with all-new Imaging color palettes

Specifications:

Display

• Size: 5" (127 mm)
• Resolution: 800x480
• Type: IPS
• Antifog: Bonded LCD
• Viewing angles: 80° all
• Backlight: LED

Networking

• SD Card Storage: Micro SD Card (32 GB Max)

Power

• Local Supply: 12 VDC
• Consumption local supply: 280mA, 190mA at 12VDC (backlight full/off)
• Recommended Fuse Rating: 5A

Interface

• Interface: Keypad: 9-way directional keypad (Zoom +/- Exit, Enter/Menu, Waypoint/Cursor, Power/Light, Pages)

GPS

• Correction: SBAS
• Time to first fix: 45 s
• GPS: GPS / SBAS

Environment

• Humidity: 66°C at 95% for 48 hrs
• Temperature operation: -15°C to +55°C (5°F to 131°F)
• Temperature storage: -20°C to +60°C (4°F to 140°F)
• Protection: IPX7 with card door closed

Mechanical

• Weight: 0.45 kg (1 lb)
• Size: 182 mm (7") x 127 mm (5")
• Mounting: Panel mount or bracket
• Material: CYCOLOY C1200HF (PC & ABS BLEND)
• Color: Black
• Cable Inlet: 1 - 2 pin power connector / 1 - 8 pin sonar connector
