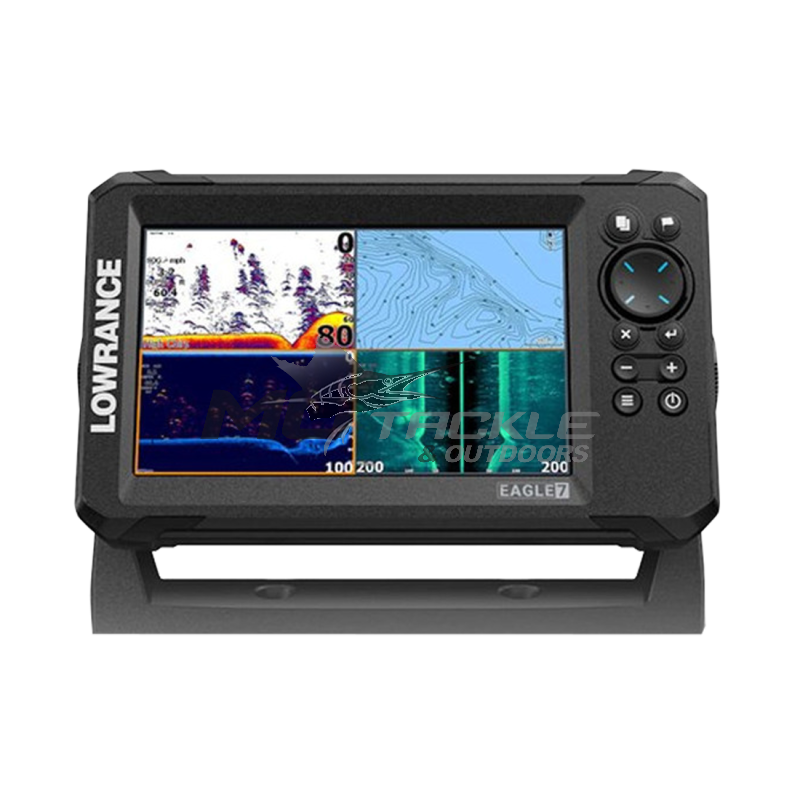

Lowrance Eagle 7 Tripleshot HD Aus/NZ Sounder
$999.00
Out of stock
Eagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features newly designed TripleShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal set up.
Eagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features newly designed TripleShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal set up. A new IPS screen provides higher resolution and visibility from all angles. This model comes pre-loaded with a worldwide basemap chart, and the option to upgrade to CMAP® DISCOVER™.
Features:
- Enhanced TripleShot™ HD Transducer with Autotuning sonar
- Worldwide basemap
- IPS screen, viewable from all angles, even in polarized glasses
- New reliable twist-lock connector system for easy installation in any boat or kayak
- SD card slot for software updates, Genesis Live recording and charting add-ons.
- See fish hiding in cover with FishReveal™ mode
- Increase contrast and viewability with all-new Imaging color palettes
Display:
- Backlight Color: Pure white LED
- Display Resolution: 800 x 480
- Display Size: 7 inches
- Screen Brightness: 1000 NITS
- Viewing Angle: s80° top/bottom, 80° left/right
- Connectivity:
- SD Card Storage: 1 slot (microSD® 32 GB maximum)
Cartography:
- Charts supported: C-MAP® DISCOVER™.
- Electrical:
- Power Consumption max: 550 mA @ 12 V DC with backlight on full
- Power Consumption min: 250 mA @ 12 V DC with backlight off
- Power Consumption typical: 550 mA @ 12 V DC with backlight on full
- Recommended Fuse Rating: 3A
- Supply Voltage: 12v DC (10.8-17VDC)
Environment:
- Humidity: 60°C, 95% relative humidity (RH) for 48 hours
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
- Waterproofrating: IPX7 with card door closed
GPS:
- Correction: SBAS
- Time to First Fix: 45s
- MFD:
- Cartography included: Worldwide basemap chart
- Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails
Physical:
- Compass Safe: 12" (300mm)
- Dimensions W x H x D: 225.9 mm (8.89") x 139.8 mm (5.5") x 88.5 (3.48)
- Mounting Type: Gimbal bracket or dash mount
- Weight: 0.46 kg (1.01 lb)
- Interface Keypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power/backlight
- Warranty Period 1 Year + 4 additional years of upgrade options totalling 5 years
